FMD-2004A聲光報警器BBJ-5W
產品概述
FMD-2004A聲光報警器BBJ-5W是一款專為工業環境設計的警示設備，適用于冶金、化工、礦山、起重機械等場景。該產品采用一體化聲光設計，集成了高亮度LED指示燈與高音量蜂鳴器，能夠在復雜環境中提供清晰可見的視覺警示和穿透力強的聽覺提示。其外殼采用防風雨工藝，具備良好的防水防塵性能，適合露天或惡劣條件下長期穩定工作。用戶可根據實際需求選擇不同音調和音量，確保警示效果既醒目又不刺耳。1613
核心特點
FMD-2004A BBJ-5W結合了實用性與可靠性。其聲音強度可達90分貝以上，支持三種可調音調（如警車聲、消防聲等），適應不同場合的警示需求；LED警示燈采用旋轉式設計，日光下可見性強，夜間效果更佳。產品結構緊湊，安裝簡便，可通過壁掛或膨脹螺絲固定，并支持12V-380V寬電壓輸入，兼容多種電源環境。內部電路經過優化，抗干擾能力強，使用壽命長，維護需求低。4616
應用場景
該報警器廣泛應用于天車、推焦機、港口機械等大型設備的安全警示，也可用于消防工程、火車道口等公共安全領域。其聲光同步報警功能能有效提醒現場人員注意設備運行狀態或潛在危險，減少事故風險。此外，產品還可與傳感器聯動，實現自動觸發報警，適用于輸送帶跑偏、物料溢出等工業場景的實時監控。1512
技術參數
工作電壓：12V-380V AC/DC；功率：5W；聲壓：≥90dB；防護等級：IP65；環境溫度：-30℃~70℃；燈罩顏色可選紅、黃、藍等。產品重量輕，安裝尺寸靈活，適合多種安裝方式。用戶可通過外部開關或遠程信號控制報警啟停，操作簡單直觀。61316
Product Overview
The FMD-2004A BBJ-5W audible and visual alarm is designed for industrial environments such as metallurgy, chemical plants, mining, and heavy machinery. It integrates high-brightness LED indicators with a loud buzzer, delivering clear visual and auditory alerts even in noisy conditions. The housing features weather-resistant construction, ensuring durability in outdoor or harsh settings. Users can adjust tone and volume to balance alert effectiveness and comfort. 1613
Key Features
The BBJ-5W model offers customizable tones (e.g., siren, fire alarm) with sound output exceeding 90dB, paired with a rotating LED beacon for high visibility day or night. Its compact design supports wall mounting and accepts 12V-380V power input for broad compatibility. The internal circuitry is optimized for stability and longevity, requiring minimal maintenance. 4616
Applications
Ideal for overhead cranes, coke pushers, and port machinery, this alarm enhances safety by alerting personnel to operational hazards. It is also used in fire safety systems and railway crossings. Automatic triggering via sensors enables real-time monitoring of conveyor belt deviations or material spills. 1512
Specifications
Operating voltage: 12V-380V AC/DC; Power: 5W; Sound pressure: ≥90dB; Protection: IP65; Temperature range: -30℃~70℃; Optional lens colors include red, yellow, and blue. Lightweight with flexible mounting options for easy installation and control via external switches or remote signals. 61316
FMD-2004A聲光報警器BBJ-5W
FMD-2004A聲光報警器BBJ-5W

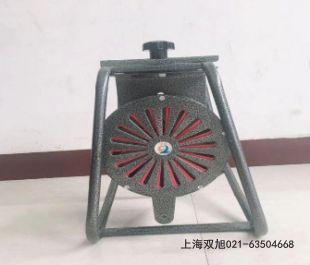

大型起重機械等行走設備在冶金企業中是非常重要的設備，它露天作業使用頻繁、啟動聲音小、速度較快，容易因不被現場人員注意而發生**事故。我廠生產的TBJ-150一體化聲光報警器，是針對大型起重機械的工作特點和結構特性而開發的專用報警器，具有許多專業化的特點。
產品特點：
·5W、25W報警音響——聲音宏亮
·帶不銹鋼防護罩旋轉警燈——高亮度、耐沖擊
·防風雨電路工藝設計——防水、防塵、質量可靠
·警燈、警號一體化——安裝簡便
·交流220V觸發即報警——操作簡單
·可選擇高亮度LED頻閃燈——高質量、壽命長、高亮度
|
工作電壓
AC220V、50Hz
|
警號功率
5W、25W
|
警燈直徑
D=150mm
|
|
防護罩
不銹鋼
|
觸發信號
AC220V
|
殼體材料
鋼板、噴涂
|
|
外形尺寸（高x長x寬）：435x180x155（mm）
|
