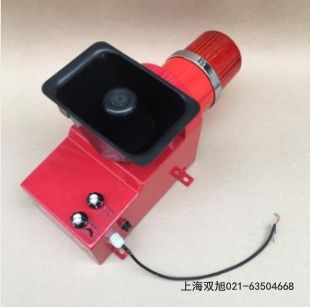

聲光報警器DBSG-06B
產品概述
DBSG-06B聲光報警器是一款專為工業環境設計的智能安全警示設備，集高亮度LED警示燈與高分貝音頻報警于一體。該產品采用一體化結構設計，具有防水防塵、抗震耐腐蝕等特性，適用于港口碼頭、冶金化工、起重機械等多種工業場景。產品通過聲光雙重報警模式，有效提升作業現場的安全警示效果，幫助預防潛在事故風險。146
核心特點
該報警器采用模塊化設計，支持多種音調定制（包括警笛音、工程音、語音提示等），聲音強度可達130分貝，LED警示燈支持紅/黃/藍/綠/白多色可選，閃爍頻率可根據需求調整。外殼采用鋁合金壓鑄工藝，防護等級達IP54，工作溫度范圍-30℃至+70℃，適應各種惡劣環境。安裝方式支持壁掛式螺絲固定，接線簡單且支持DC24V/AC220V等多種電壓輸入。2412
應用場景
DBSG-06B廣泛應用于鋼鐵廠、礦山、港口機械、工程車輛等場所，特別適用于天車、行車、皮帶輸送設備等需要安全預警的移動設備。其顯著的聲音穿透力和醒目的光信號能有效提醒周邊人員注意設備啟停狀態，保障作業安全。產品還可擴展應用于銀行、電信基站等民用安防領域。6715
Product Overview
The DBSG-06B audible and visual alarm is an integrated safety warning device designed for industrial environments. It combines high-intensity LED warning lights with 130dB audible alerts to provide dual warning signals. The rugged IP54-rated housing ensures reliable operation in harsh conditions including ports, metallurgical plants, and heavy machinery applications. This unit enhances worksite safety through simultaneous visual and auditory warnings. 19
Key Features
Featuring customizable alarm tones (siren, industrial tones, voice prompts) and multi-color LED strobes, this alarm supports flexible configuration. Its die-cast aluminum enclosure provides corrosion resistance with operating temperatures from -30°C to 70°C. The device offers multiple voltage options (DC24V/AC220V) and simplified wall-mount installation. The patented optical system delivers 360° visible warning coverage. 41216
Typical Applications
Ideal for overhead cranes, conveyor systems, and mobile equipment in steel mills, mining sites, and dockyards. The penetrating alarm sound and flashing lights effectively notify personnel of equipment movements. Additional applications include perimeter security systems and emergency notification in commercial facilities. The product s durability and low maintenance requirements make it suitable for continuous industrial use. 62122
聲光報警器DBSG-06B聲光報警器DBSG-06B
產品簡介：
大型起重機械等行走設備在冶金企業中是非常重要的設備，它露天作業使用頻繁、啟動聲音小、速度較快，容易因不被現場人員注意而發生**事故。我廠生產的TBJ-150一體化聲光報警器，是針對大型起重機械的工作特點和結構特性而開發的專用報警器，具有許多專業化的特點。
產品特點：
·5W、25W報警音響——聲音宏亮
·帶不銹鋼防護罩旋轉警燈——高亮度、耐沖擊
·防風雨電路工藝設計——防水、防塵、質量可靠
·警燈、警號一體化——安裝簡便
·交流220V觸發即報警——操作簡單
·可選擇高亮度LED頻閃燈——高質量、壽命長、高亮度
技術參數：
DBSG-06B
|
工作電壓
AC220V、50Hz
|
警號功率
5W、25W
|
警燈直徑
D=150mm
|
|
防護罩
不銹鋼
|
觸發信號
AC220V
|
殼體材料
鋼板、噴涂
|
|
外形尺寸（高x長x寬）：435x180x155（mm）
|
DBSG-06B
|
工作電壓
AC220V、50Hz
|
警號功率
5W、25W
|
警燈直徑
D=150mm
|
|
防護罩
不銹鋼
|
觸發信號
AC220V
|
殼體材料
鋼板、噴涂
|
|
外形尺寸（高x長x寬）：435x180x155（mm）
|
